AR | Submerged Implant System

Biotem

• 0.7pitch x 0.15depth x double thread • Synchronized thread • Optimized design for (SLA/RBM) surface • Reinforce fixture strength

Single Pitch Macro Thread

Easy to get initial stability in soft bone

Taper degree 1.5°

• Powerful self threading • Easy path change

Helix Cutting Edge

• The Fixture & Abutment interface ensures hermetic sealing • This distributes the load to the fixture evenly. Therefore, it minimized bone loss

Morse Tapered Connection 11

• 0.7pitch x 0.35depth x double thread • Powerful self threading • Keep implant path • Easy to change the path • High initial stability • Decrease sensitivity on drill size

Corkscrew Thread

• Self drilling ability • Increased initial stability at fresh extraction socket

Apical

More Details

all informations about this product

“For inquiries regarding pricing and product availability, please contact us.”

We at DiarTajhiz proudly operate as one of the most reputable suppliers and importers of dental equipment, especially dental implant equipment.

With over 12 years of experience in the dental industry and collaboration with top international brands, our effort is always to provide quality products that meet global standards to the Iranian dental community. Our goal is to create trust and satisfaction among customers by providing original products and professional services.

AR | Submerged Implant System

More Details

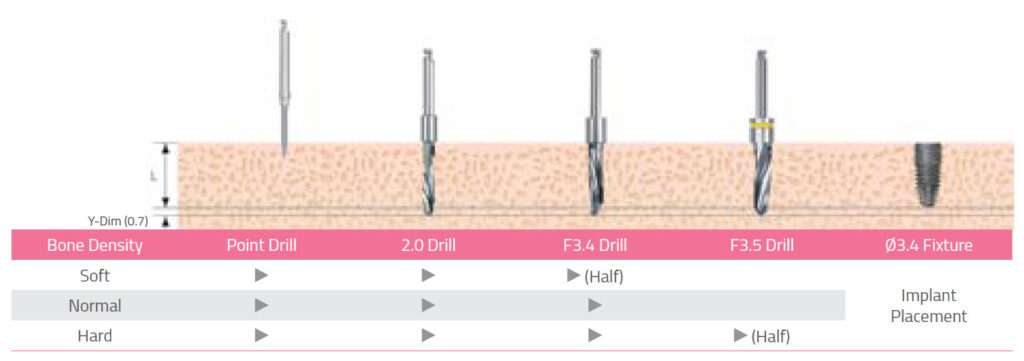

FXAR 3.4 | Drilling Sequence

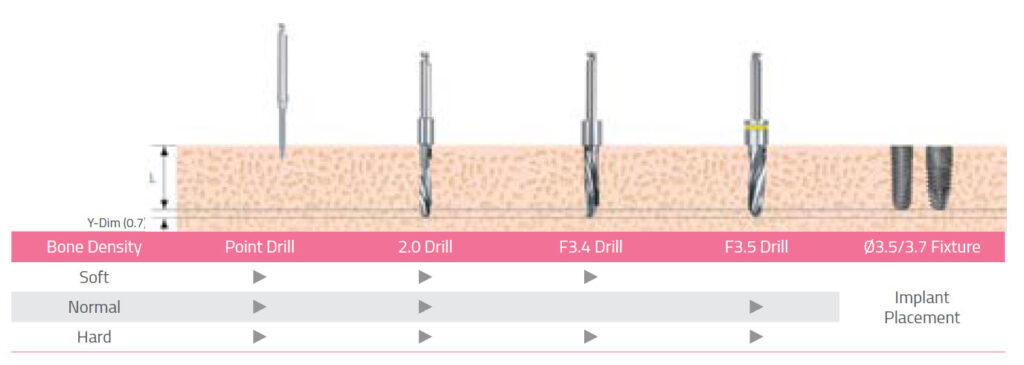

ASTFA 3.5 / FXAR 3.7 | Drilling Sequence

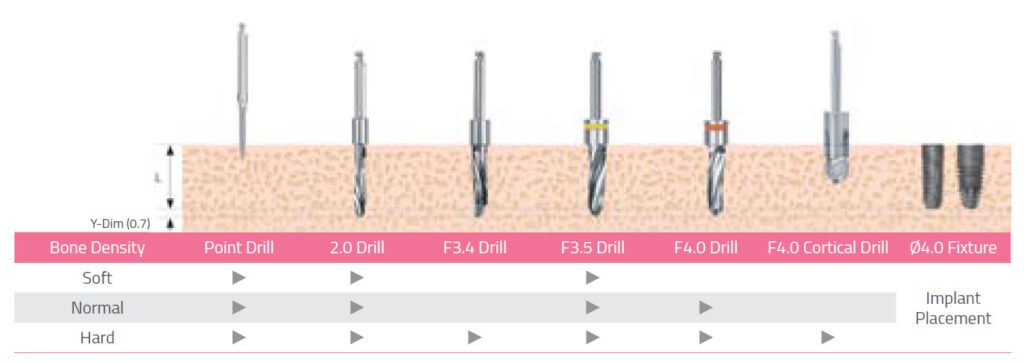

ASTFA 4.0 / FXAR 4.0 | Drilling Sequence
